We provide our clients with customized solutions to meet their specific needs. We can provide innovative and comprehensive solutions for applications in all industries.



CAMERAS - MONOCHROME ANALOG >>

Autim can provide high-performance cameras for use in machine vision, medical and defense applications. We utilize components from the best in the industry. Please contact us for pricing and with any questions you have about our products.

Industrial - Progressive Scan
TOSHIBA
MODEL DESCRIPTION PHOTO

IK-52V

1/2" CCD, 659x494 pixels, 30fps, 29(W)x29(H)x29(D)mm

IK-53V

1/3" CCD, 659x494 pixels, 30fps, 29(W)x29(H)x29(D)mm

TOSHIBA-TELI
MODEL DESCRIPTION PHOTO
CS3950D

1/3" CCD, 1024x768 pixels, 30fps, 44(W)x29(H)x78(D)mm

CS8550i

1/3" CCD, 640x480 pixels, 30 fps, 29(W) x 29(H) x 39.5(D)mm

CS8550Di

1/3" CCD, 640x480 pixels, 60 fps, 29(W) x 29(H) x 39.5(D)mm

CS8560D

1/3" CCD, 640x480 pixels, 60fps, 29(W)x29(H)x26.5(D)mm

CS8570D

1/2" CCD, 640x480 pixels, 60fps, 29(W)x29(H)x26.5(D)mm



Industrial - RS170
TOSHIBA-TELI
MODEL DESCRIPTION PHOTO
CS8620i, Ci, Hi

1/2" CCD, interlaced, 29(W)x29(H)x32 mm

CS8630i, Ci, H

1/3" CCD, interlaced, 29(W)x29(H)x32 mm

CS8420i

1/2" CCD, 570TV(H)x485TV(V), 31(W)x29(H)x70(D)mm

CS8430i

1/3" CCD, 570TV(H)x485TV(V), 31(W)x29(H)x70(D)mm

CS8310Bi

2/3" CCD, 768x494 pixels, 30fps interlaced, 29(W)x29(H)x64(D)mm




Remote Head - Progressive Scan

TOSHIBA
MODEL DESCRIPTION PHOTO

IK-M41F2

1/2" CCD, 768x494 pixels, head 17mmx38.9mm CCU 80mmx40.2mm

TOSHIBA-TELI
MODEL DESCRIPTION PHOTO

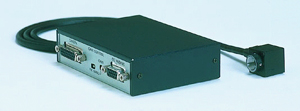

CS8541D

1/3" CCD, 659x494 pixels, head 20x20x25mm, CCU 110x28x80mm

CS3821D

1/3" CCD, 659x494 pixels, head Phi-17x36.2(D)mm, CCU 44x29x73.6(D)mm

Remote Head - RS170
TOSHIBA
MODEL DESCRIPTION PHOTO
CS4200B,BC

1/2" CCD, 768x494 pixels, head 17x36.2mm, CCU 110x28x156mm

CS4300B,BC

1/2" CCD, 768x494 pixels, head 12x36.2mm, CCU 110x28x156mm

CS8311Bi

2/3" CCD, 768x494 pixels, head 44x29x33mm, CCU 44x29x64mm

CS3330Bi,BLi

2/3" CCD, 768x494 pixels, head 46x41(D)mm, CCU 220x60x240(D)mm
